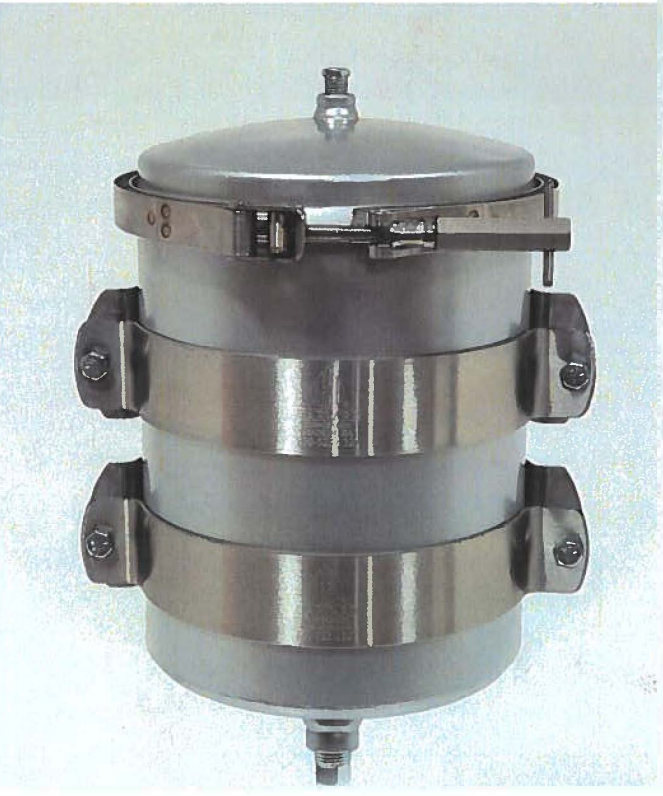

HV-500 Oil Filtration Kit

HV-500 Oil Filtration Housing Kit - Used in motor engines with oil capacities less than 18.9 litres.

Capacity and Flow Rate

• Requires 11.4 L of makeup fluid (housing volume)
• Ideal sump range from 18.9-41.6L
• Flow rate range from 0-4.7 LPM

Dimensions and Weight

• 36.18 cm (H) (Plus 33.02 cm clearance above to change filter)
• 26.97 cm (W)
• 27.31 cm (D)
• 13 kg Shipping weight

Other Specifications

• Max operating pressure:  80 PSI
• 1.27 cm FNPT inlet, outlet and drain ports
• Powder-coated inside and out
• Use with petroleum or synthetic fluids
• Includes pressure gauge, clamps / brackets, and 1 cartridge
• Replacement element:  Harvard 500-2 Section Filter Element

NOTES

• Viscosity, operating temperature and generated contamination will affect sizing and flow rates of filtration equipment.
• Flow rates are established using ISO 10-1000 viscosity oils at the standard 40°C and may vary
• In most applications, elements need to be changed every 500–1,000 hours for optimal performance. Ideally, change the element when the flow is half the starting flow or the PSI is double the starting PSI

• Kit does not include ½ inch NPT connectors or hoses
